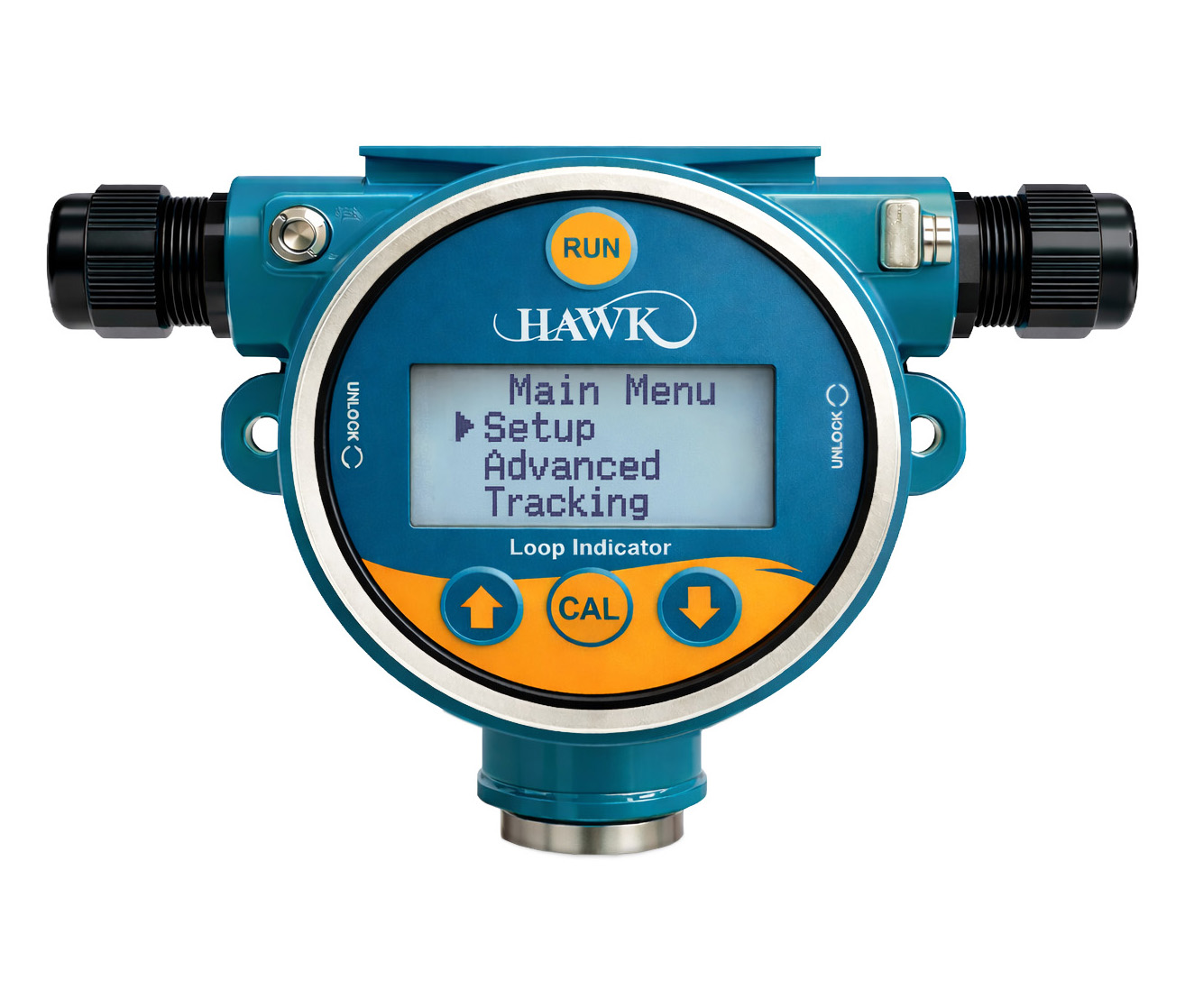

HAWK HART Configurator & Loop Indicator (HRC)
The HAWK HART Configurator & Loop Indicator combines remote commissioning, configuration and local indication into a single rugged field-mounted interface for HAWK radar level transmitters. The unit enables full remote setup and diagnostics of HAWK Senator Free Space Radar and Centurion Guided Radar product lines (CGR, H80, S60, S80, S24), while also supporting Generic HART communication with compatible third-party instruments
Industries
- Process Instrumentation
- Asset Monitoring
- Field Configuration
- Commissioing & Support
- Mining
- Water / Wastewater
- Power Stations
- Chemicals
- Plastics
- Food and Beverage
- Many more
Product: HRC
Quantity
Add to Quote Cart
The HAWK HART Configurator & Loop Indicator provides a practical, field-mounted interface for commissioning, configuring and monitoring HART-enabled instrumentation directly from the process loop. By combining remote HART communication with a configurable local display, it eliminates the need for dedicated handheld communicators during routine setup, maintenance and troubleshooting.
Installed directly into the 4–20mA HART loop, the unit offers full access to configuration parameters, diagnostics and process variables for HAWK Senator Free Space Radar and Centurion Guided Radar transmitters (CGR, H80, S60, S80 and S24), while also supporting Generic HART communication with compatible third-party devices. A non-HART version is also available, providing a versatile programmable 4–20mA loop indicator for standard analogue instrumentation.
The high-visibility backlit LCD presents process values in a range of selectable formats including engineering units, loop current, bar graphs and HART variables. User-configurable alarms and status indication enable operators to quickly identify abnormal operating conditions, making the unit suitable for both everyday process monitoring and field maintenance across a wide range of industrial applications.
- Supports full paramerisation of HART Radars (S60, H80, S24, S80) and Guided Radar (CGR)
- 5-digit value display
- Easy calibration via push buttons on the front panel
- Bright red alarm display
- No external power required
- Failure will not affect the loop integrity
HART Configuration: Full Configuration for Radar (H80, S60, S80, S24), and Guided Radar (CGR) product series.
Generic HART Commands (3rd party)
Display Alarms: LCD illuminates Red if current is out of range
Display Modes: %, Material Units, Current, Bar Graph
HART Display Modes: PV, SV, TV, QV, Dual mode
Display Units: Fully customizable with 39 pre-set unit types
Display Range: 6 digits (including decimal point)
Display Digit Height: 7mm (0.3")
Operating Temp: -20ºC to +60ºC (-4ºF to 140ºF)
Display Alarms: LCD illuminates Red if current is out of range
Display Modes: %, Material Units, Current, Bar Graph
HART Display Modes: PV, SV, TV, QV, Dual mode
Display Units: Fully customizable with 39 pre-set unit types
Display Range: 6 digits (including decimal point)
Display Digit Height: 7mm (0.3")
Operating Temp: -20ºC to +60ºC (-4ºF to 140ºF)
Extremely Low Voltage Drop (With Backlight): 2.84V at 4mA, 3.39V at 20mA
