Chute Blockages: Unavoidable but Detectable

Blocked Chute Detection – Challenges and a Proven Solution

Chute systems may appear simple in function, moving material from one point to another, but in reality, they are among the most demanding components in bulk material handling operations. Designed to handle high throughput, material variability, and extreme wear, they act as critical arteries within mining and processing facilities.

Despite careful engineering, one unavoidable truth remains: every chute has the potential to block. When a blockage occurs, the consequences can be severe, including production losses, equipment damage, and safety risks to personnel.

While external factors like conveyor failures can contribute, most blockages are caused by internal conditions such as material build-up, inconsistent flow, particle degradation, and chute or liner design limitations. Even with advanced modelling, it is impossible to eliminate all variables, making blocked chute events not just possible, but likely.

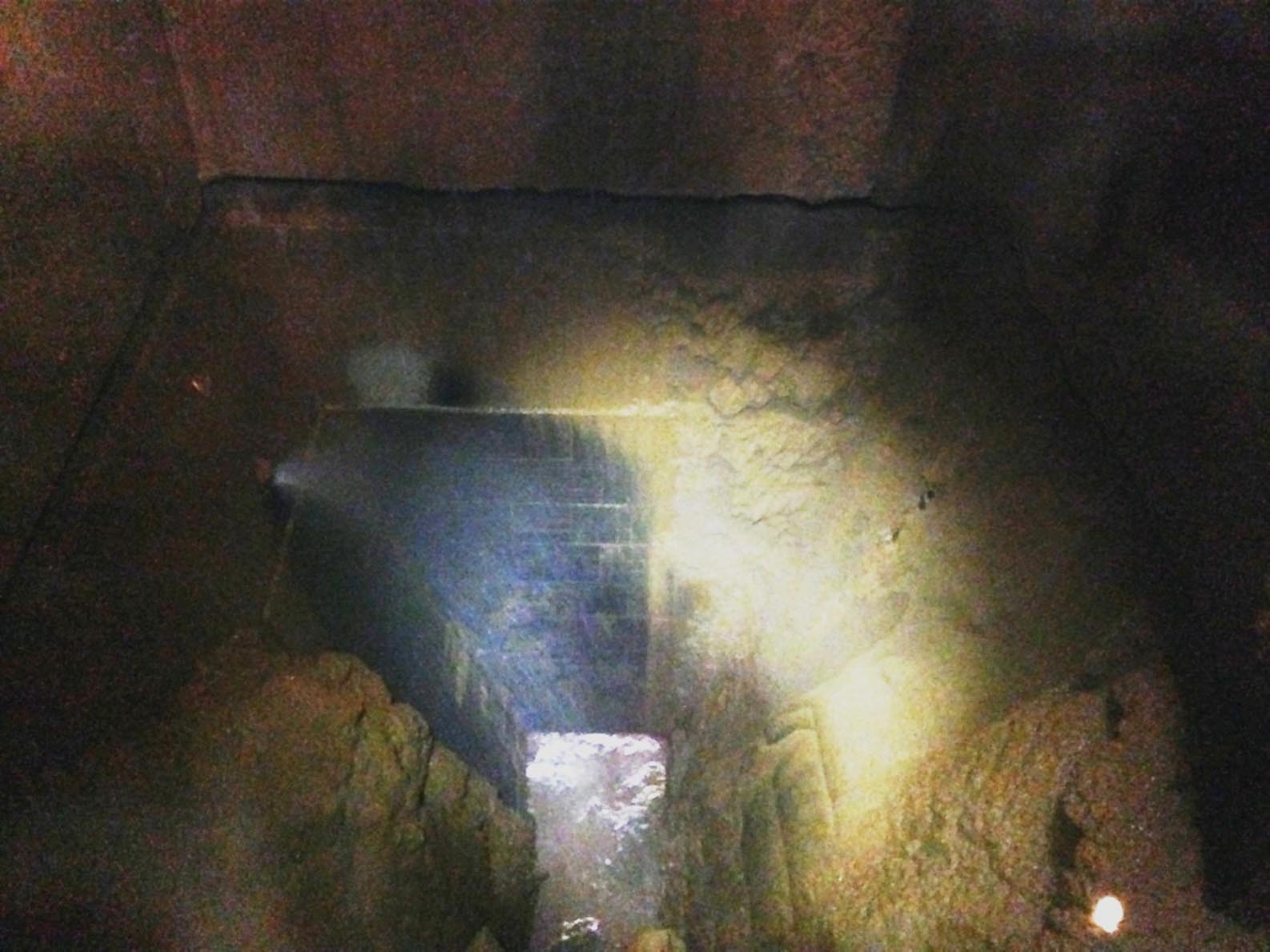

The Challenge of Reliable Detection

Transfer chutes are among the harshest environments for instrumentation. Dust, moisture, abrasion, and continuous material flow make reliable detection extremely difficult.

Over the years, several technologies have been used to detect blockages, but each comes with critical limitations:

		Wear & Damage: Probes degrade quickly in abrasive environments Material Build-Up: Causes false alarms or missed detections Moisture Sensitivity: Impacts measurement accuracy Process Intrusion: Sensors are exposed and can be buried or damaged Delayed Detection: Many systems only react once the chute is already full Why Traditional Technologies Fall Short Tilt Switches Installed at the top of the chute, these devices only activate once material reaches them, often too late. They are prone to false trips from impact and offer no failsafe indication. Build-up can also prevent proper operation. Pressure Plate Switches Mounted on chute walls, these rely on material pressure. However, diaphragm wear and build-up frequently lead to unreliable performance and false signals. Radar & Ultrasonic Systems Typically installed at the top, these systems detect rising material levels. However, dust, build-up, and internal structures interfere with signals, causing false readings and slow response times.

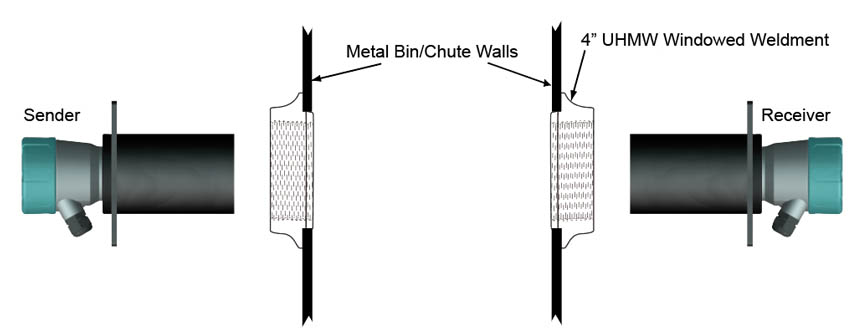

		A Proven Alternative: Microwave Precision The HAWK Gladiator Generation 3 Microwave system offers a fundamentally different approach. Instead of placing sensors inside the chute, both transmitter and receiver are mounted externally, on opposite sides. The microwave signal passes through durable UHMW windows, allowing detection without exposing instruments to the process. A blockage is detected when material interrupts the microwave signal across the chute, delivering fast, accurate, and reliable results.

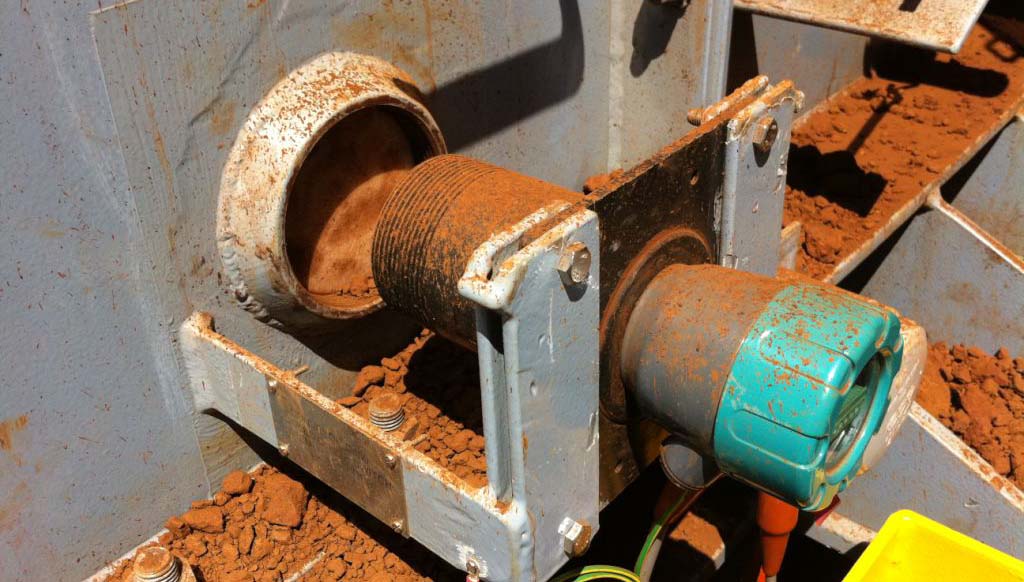

Engineered for Harsh Conditions With over 25 years of development across three generations, this system has been proven in some of the toughest applications worldwide, including crushers, trippers, and ship-loading chutes. Key advantages include: Non-intrusive design – No exposure to wear or build-up Circular polarized microwave technology – Immune to reflections and alignment issues High sensitivity receiver – Detects through heavy build-up and moisture Reliable through extreme conditions – Proven to detect through wet ore and water Fast response time – Near-instant detection to prevent escalation Unlike traditional systems, the Gladiator Microwave does not react to minor build-up or passing material, ensuring operations continue uninterrupted until a genuine blockage occurs.

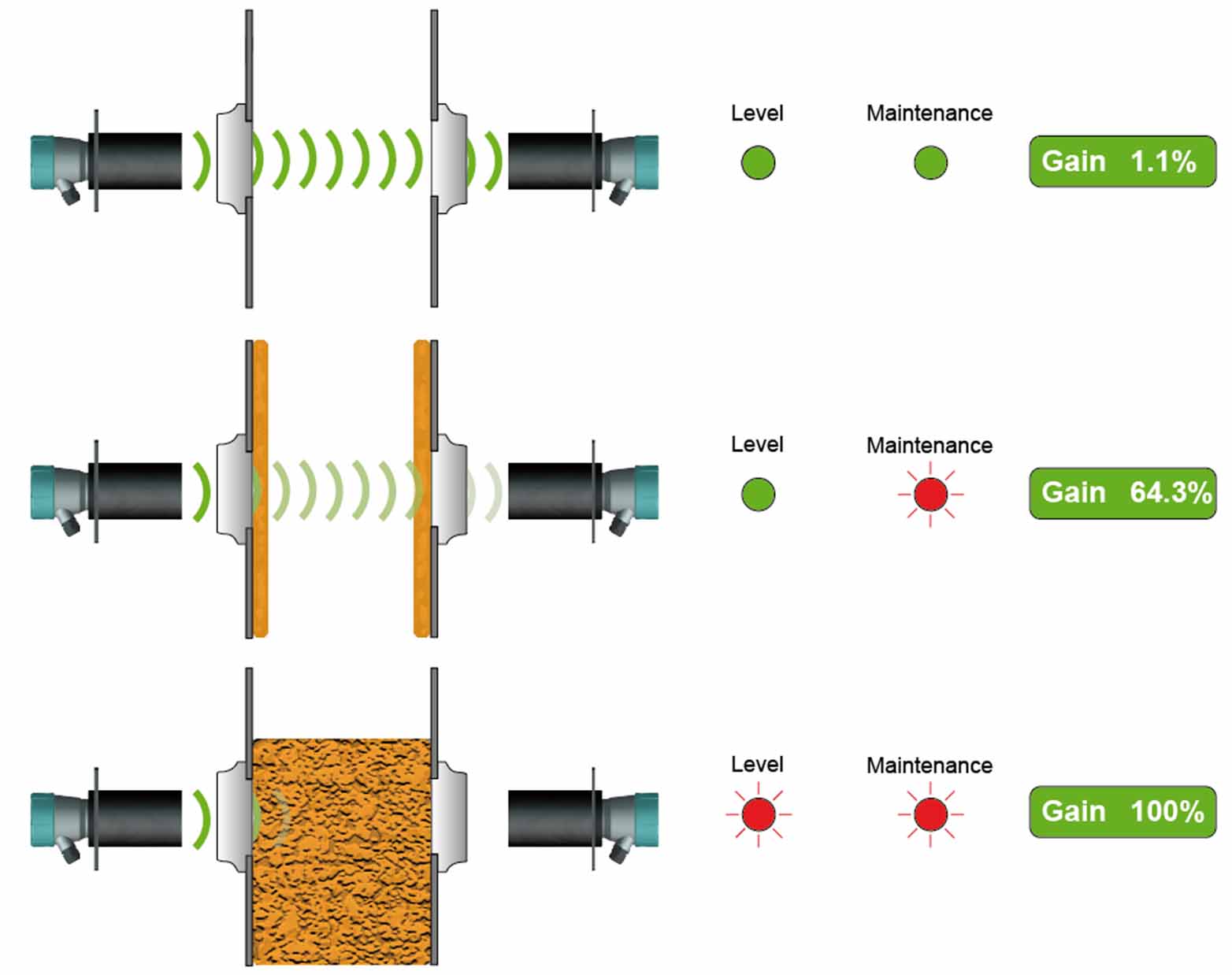

Moving from Reactive to Predictive Advanced implementations allow integration via RS485/Modbus or Modbus over Ethernet / PoE, enabling real-time monitoring of diagnostic data such as signal strength. Operators can detect early signs of build-up before a blockage occurs, shifting from reactive response to predictive maintenance. Built to Perform Where Others Fail There’s a reason it’s called the Gladiator. In one of the harshest environments in industrial processing, where traditional instruments struggle to survive, this system is designed to endure and perform. When failure is not an option, certainty matters. If blocked chute events are impacting your operation, it may be time to consider a more reliable solution. Contact our HAWK team to discuss a tailored approach for your site.
